Total Fitness USA

Titan Plate Loaded Linear Hack Squat Machine

Titan Plate Loaded Linear Hack Squat Machine

The Plate-Loaded Linear Hack Squat Machine from Titan Fitness® is great for lower body strength. This machine allows you to perform a weight-bearing squat movement at a 35-degree angle. Featuring a weight carriage that travels on commercial linear bearings and steel alloy guide rods, a large diamond plated footplate and dual 9.75-inch long weight sleeves that fit Olympic style plates. Designed to accommodate athletes of all sizes, this machine will push your lower muscular endurance.

DEDICATED HACK SQUAT: The hack squat exercise isolates the quads while reducing lower back strain. Gradually increase your intensity in the compact leg sled with the guidance of the machine’s smooth carriage.

OLYMPIC WEIGHT POSTS: Featuring 9.75-inches of loadable sleeve length, load up on weight plates to add intensity to your squats. The machine has a 700-pound weight capacity.

COMFORTABLE PADDING: The Hack Squat Machine features thick, comfortable adjustable back padding that will reduce strain and stress on your lower back. The comfortable pads are found on both the seat and back.

DURABLE CONSTRUCTION: High-quality steel construction makes this a solid and stable piece of fitness equipment. The large diamond plated footplate offers plenty of grip and the powder-coated paint will leave a longer-lasting finish.

DIMENSIONS: The Hack Squat Machine features a 700-pound capacity weight carriage that travels at a 35-degree angle and provides a footprint of 46.75 x 60.5-inches.


- Dedicated Hack Squat Machine
- Dual loadable weight posts fit Olympic weight plates
- Sled weight carriage travels on a 35-degree angle
- Bolt-together frame with a large diamond plated footplate
- Easy flip racking handle sets a desired start/stop position

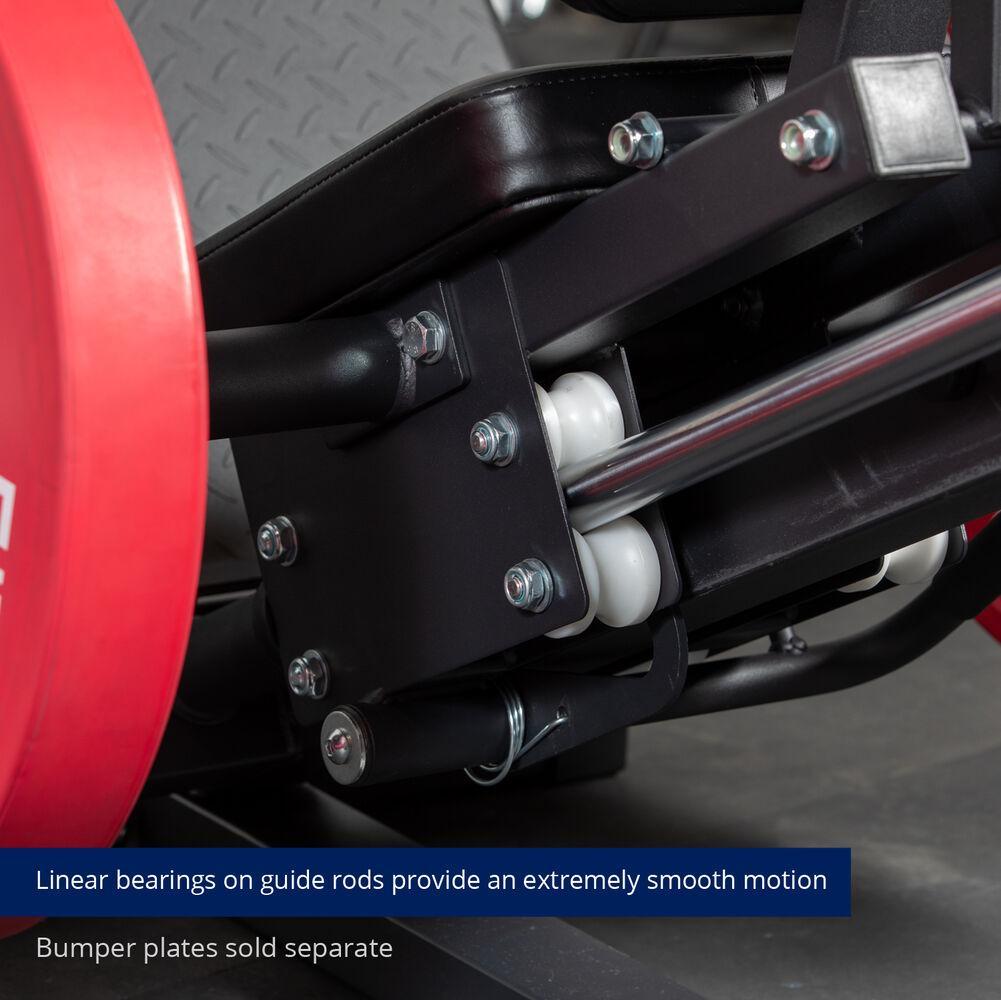

- Linear bearings on guide rods provide an extremely smooth motion
- Comfortable and adjustable for any size athlete

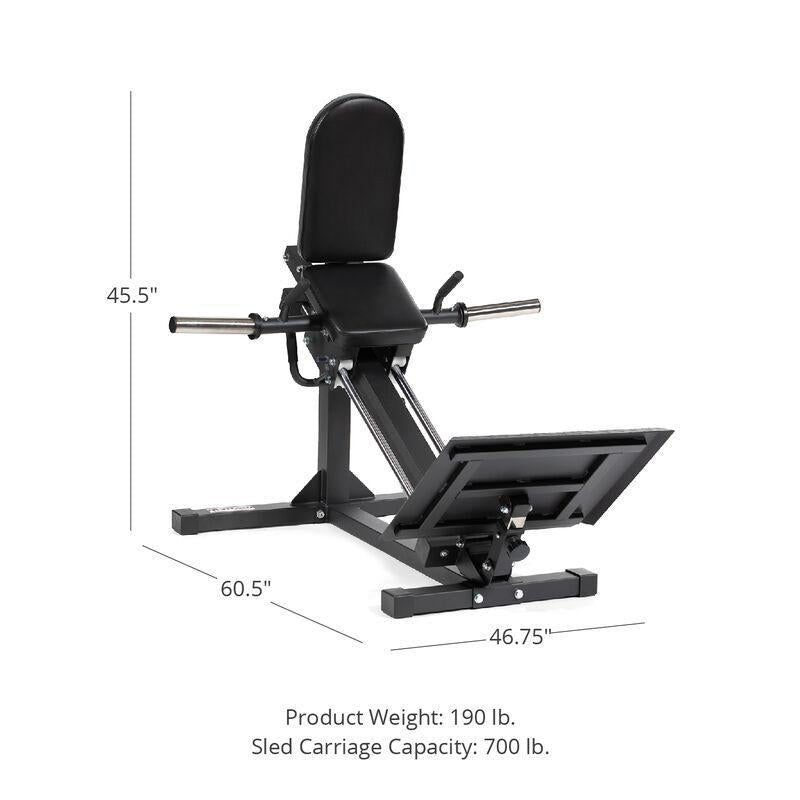

- Overall Height: 45.5-in.
- Footprint Dimensions: 46.75-in x 60.5-in.
- Footplate Dimensions: 25.25-in x 23.25-in.
- Back Pad Dimensions: 20-in x 11.5-in x 2.75-in.
- Seat Pad Dimensions: 13.5-in x 11.5-in x 2.75-in.
- Weight Sleeve Length: 9.75-in.
- Weight Sleeve Diameter: 50 mm
- Handle Length: 8-in.
- Handle Diameter: 31 mm
- Finish: Powder-Coated Black
- Material: Steel
- Sled Carriage Capacity: 700 lb.
- Product Weight: 190 lb.
Regular price $1,014.99 USD
Regular price $1,449.99 USD Sale price $1,014.99 USD
